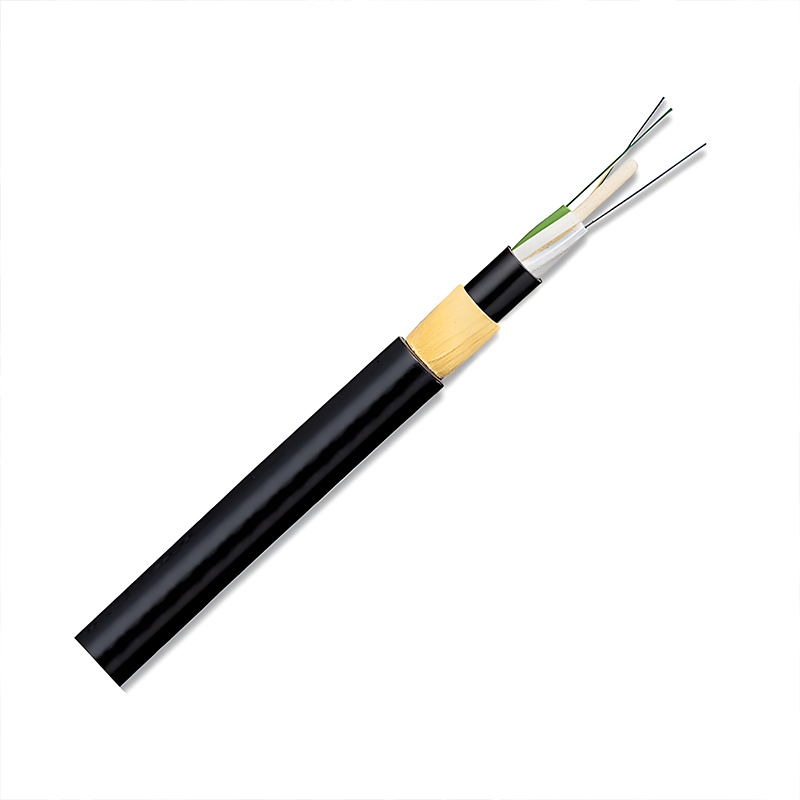

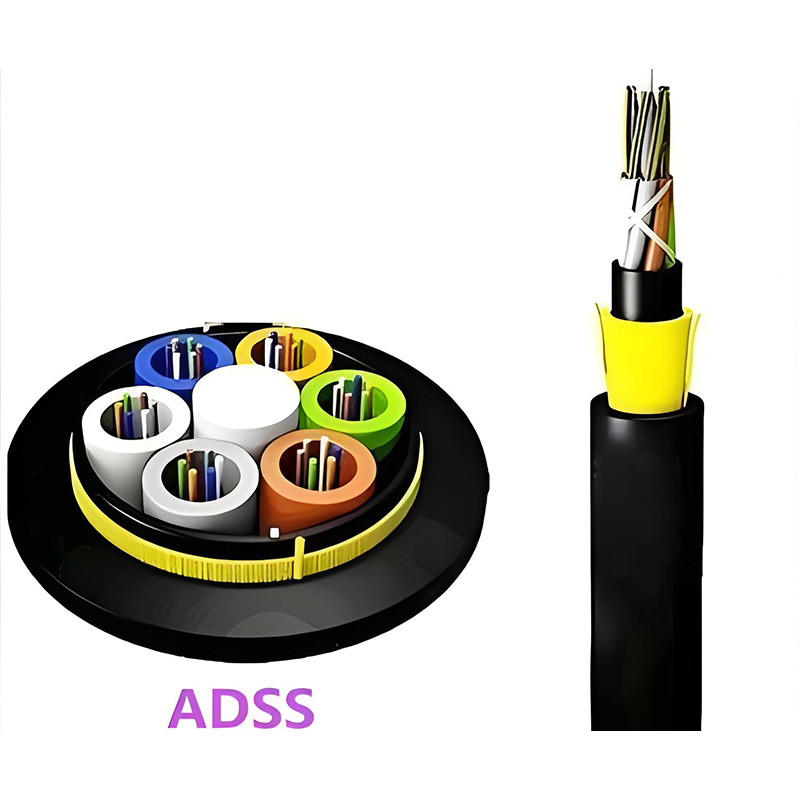

All Medium Self-supporting Optical Cable (ADSS)

Description:

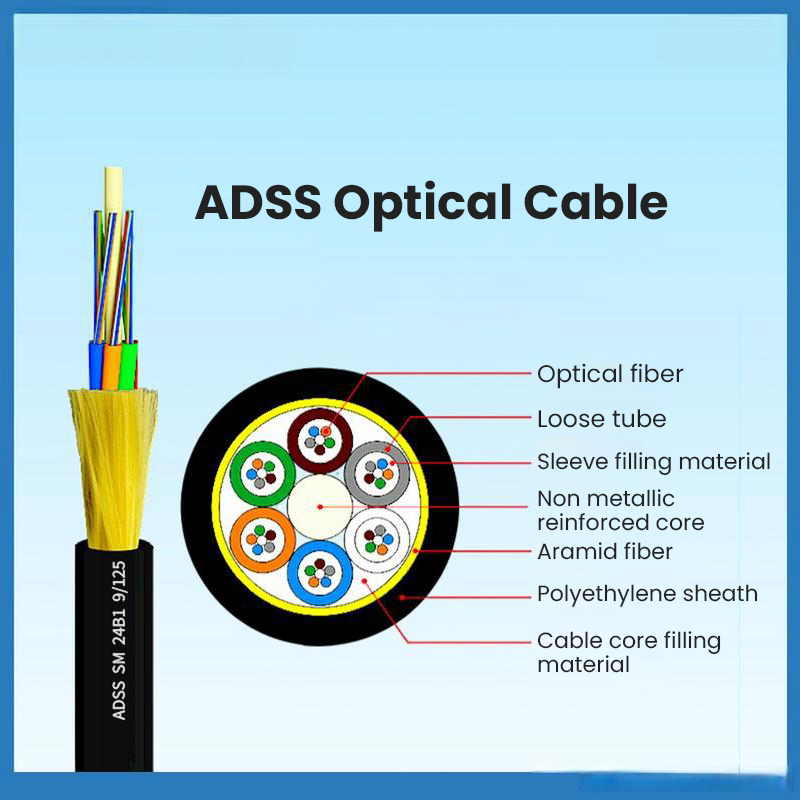

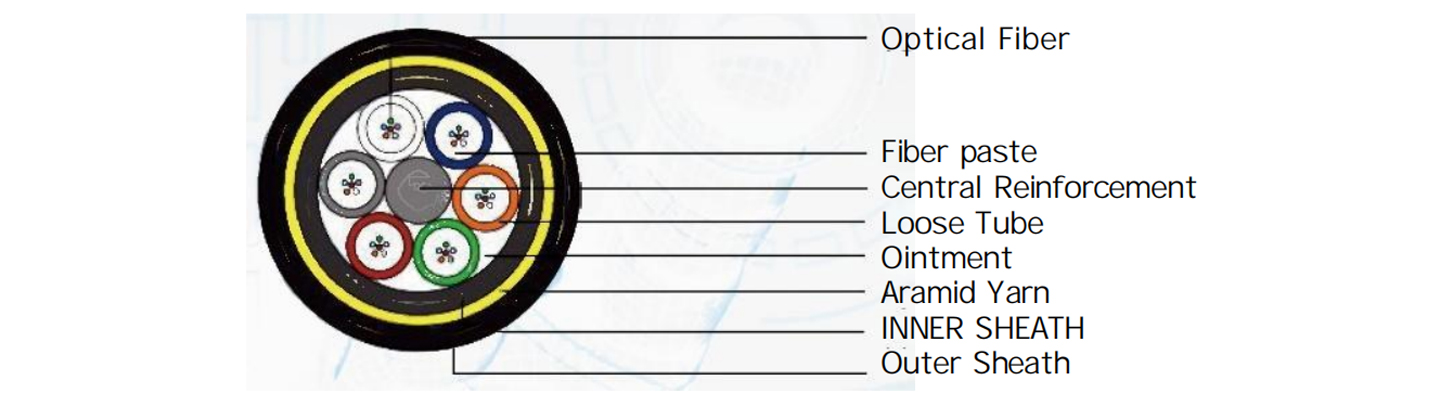

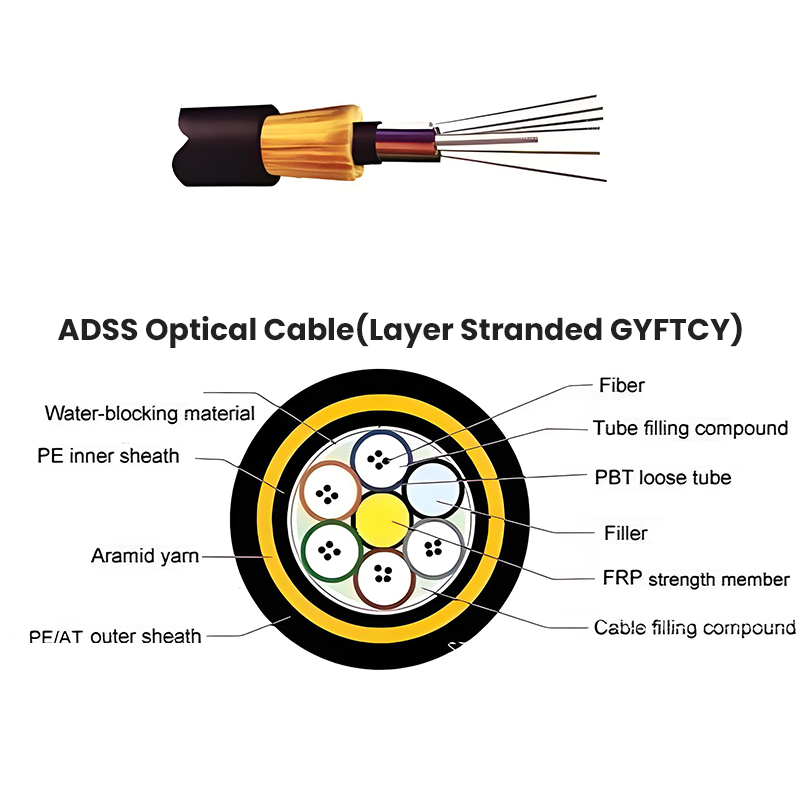

ADSS [non-metallic reinforced components, loose layer twisted filling type, polyethylene inner sheath, aramid yarn armor, polyethylene sleeve through]
The structure of the credit outdoor optical cable is to encase single-mode or multi-mode optical fibers in high modulus plastic and fill them with waterproof compounds
In the sleeve, the center of the cable core is a non-metallic reinforcement. For some fiber optic cables with a certain number of cores, the non-metallic center reinforcement is extruded externally
Wrap a layer of polyethylene. The loose tube (and filling rope) is twisted around the central reinforcement to form a compact and round cable core, with gaps filled inside the cable core
Squeeze a layer of polyethylene inner sheath with a water-resistant compound. After being armored with aramid yarn, it is extruded into a polyethylene outer sheath to form a cable.
