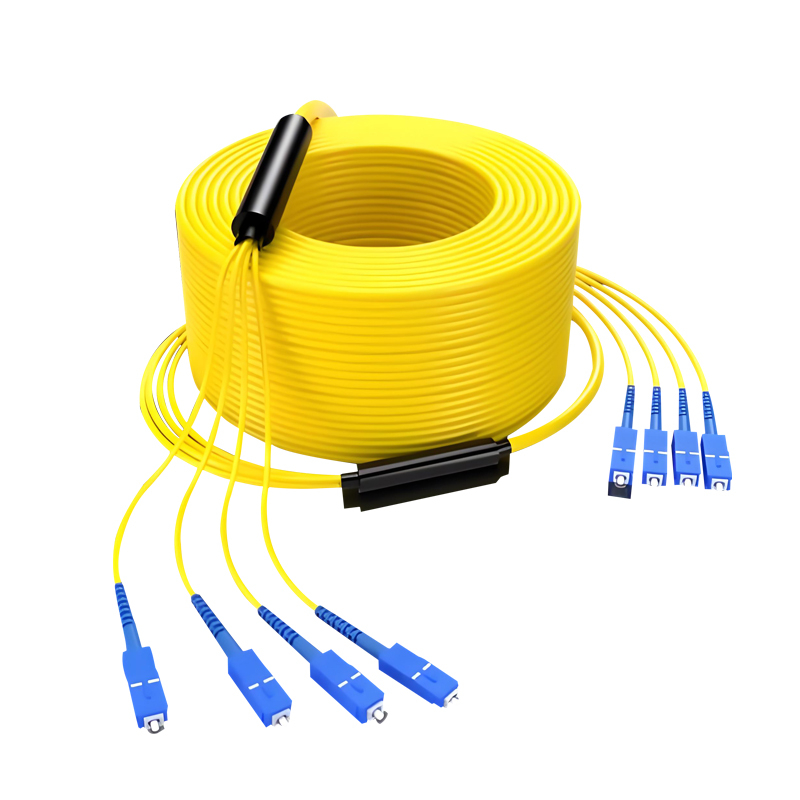

Branch Optical Cable

Description:
The simplex cables are stranded around a central strength member, and the cable is completed with an outer sheath.

Feature:
Be flexible and easy to branch cabling
The stranded structure offers more excellent mechanical performance
Different flame retardant grades cam be customized

Application:
Indoor premises
Backbone distribution cable in the building
Multi optical pigtails and patch cords
Availability:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

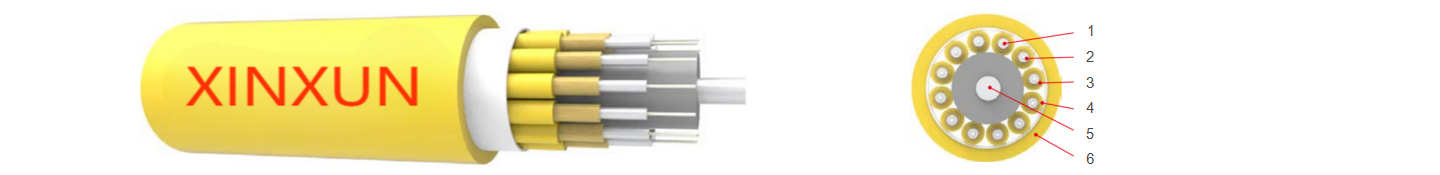

Structure & Material

No.

Item

Material

1

Fiber

G.652、G.657，50/125、62.5/125 …

2

Tight buffer

PVC、LSZH、Nylon、Hytrel …

3

Strength member

Aramid yarn

4

Inner sheath

PVC、LSZH、TPU …

5

Central strength member

FRP（ + PVC、LSZH）

6

Outer sheath

PVC、LSZH、TPU …

Color

It can be customized


Cable Property

Number  of cores

   Diameter

Tensile strength

Crush resistance

Bending radius

Tight buffer

Simplex cable

 Cable

Long term

Short term

Long term

Short term

Static

 Dynamic

（mm）

（N）

（N/100mm）

—

4

0.9 ± 0.05

2.85 ± 0.05

9.2 ± 0.4

200

660

300

1000

10·D

20·D

6

0.9 ± 0.05

2.85 ± 0.05

11.4 ± 0.4

200

660

300

1000

10·D

20·D

8

0.9 ± 0.05

2.85 ± 0.05

13.5 ± 0.4

200

660

300

1000

10·D

20·D

12

0.9 ± 0.05

2.85 ± 0.05

17.0 ± 0.4

200

660

300

1000

10·D

20·D

4

0.9 ± 0.05

1.95 ± 0.05

7.5 ± 0.2

200

660

300

1000

10·D

20·D

6

0.9 ± 0.05

1.95 ± 0.05

8.2 ± 0.2

200

660

300

1000

10·D

20·D

8

0.9 ± 0.05

1.95 ± 0.05

9.8 ± 0.2

200

660

300

1000

10·D

20·D

12

0.9 ± 0.05

1.95 ± 0.05

12.5 ± 0.5

200

660

300

1000

10·D

20·D

24

0.9 ± 0.05

1.95 ± 0.05

14.5 ± 0.5

400

1320

300

1000

10·D

20·D

36

0.9 ± 0.05

1.95 ± 0.05

16.4 ± 0.5

400

1320

300

1000

10·D

20·D

48

0.9 ± 0.05

1.95 ± 0.05

19.2 ± 0.5

400

1320

300

1000

10·D

20·D


Fiber Characteristic

Fiber type

Attenuation ( Max )

Bandwidth ( Min )

850 nm

1300 nm

1310 nm

1550 nm

850 nm

1300 nm

（dB/km）

（MHz·km）

SMF  B1.3, B6

0.4

0.3

MMF  A1a

3.5

1.5

—

—

200~800

200~1200

MMF  A1b

3.5

1.5

—

—

160~800

200~1000


Environmental Performance

Transportation & Storage

 Installation

Operation

Remarks

-20℃ — +60℃

-10℃ — +50℃

-20℃ — +60℃

RoHS

*All values above can be customized.
