Bundle Optical Cablehybrid Bundle Optical Cable

Description:

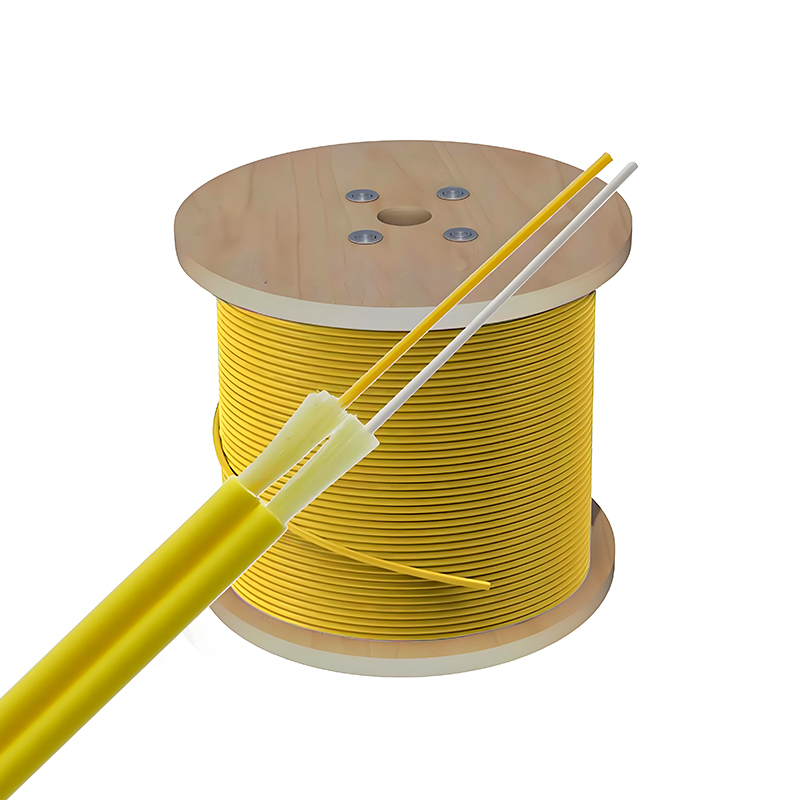

The distribution cable uses some tight buffer fibers wrapped with a layer of aramid yarn as the optical communication medium, and it is completed with an outer sheath.

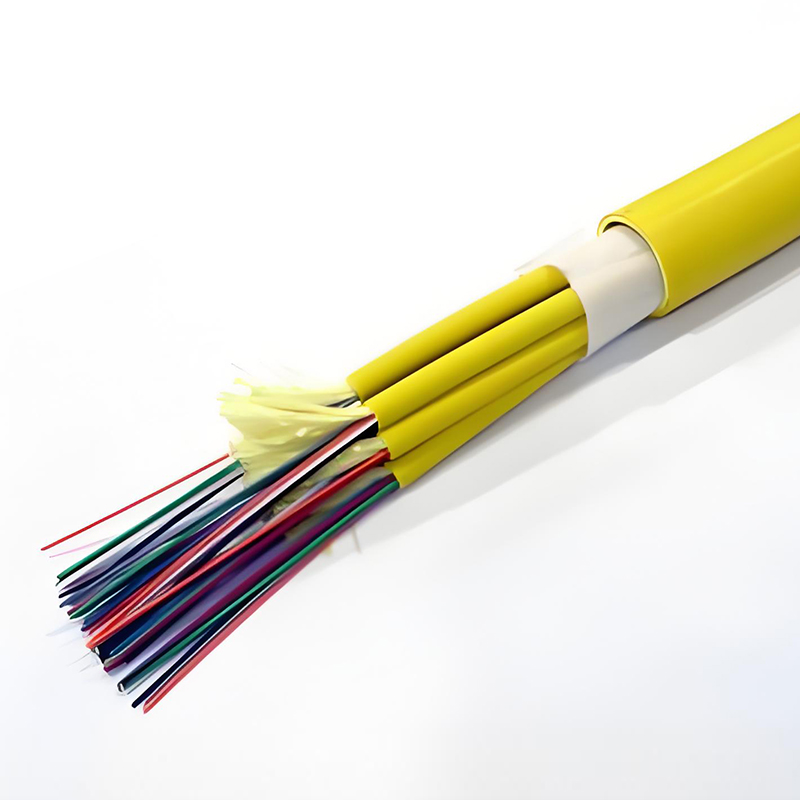

The distribution cables are stranded around a central strength member, and the multi- cores distribution cable is completed with an outer sheath.

Feature:
Be flexible and easy to branch
Excellent mechanical performance
Different flame-retardant grades can be customized

Application:
Indoor premises cabling
Backbone distribution cable in the building
Multi optical pigtails and patchcords


Availability:



Inquire

Product Description

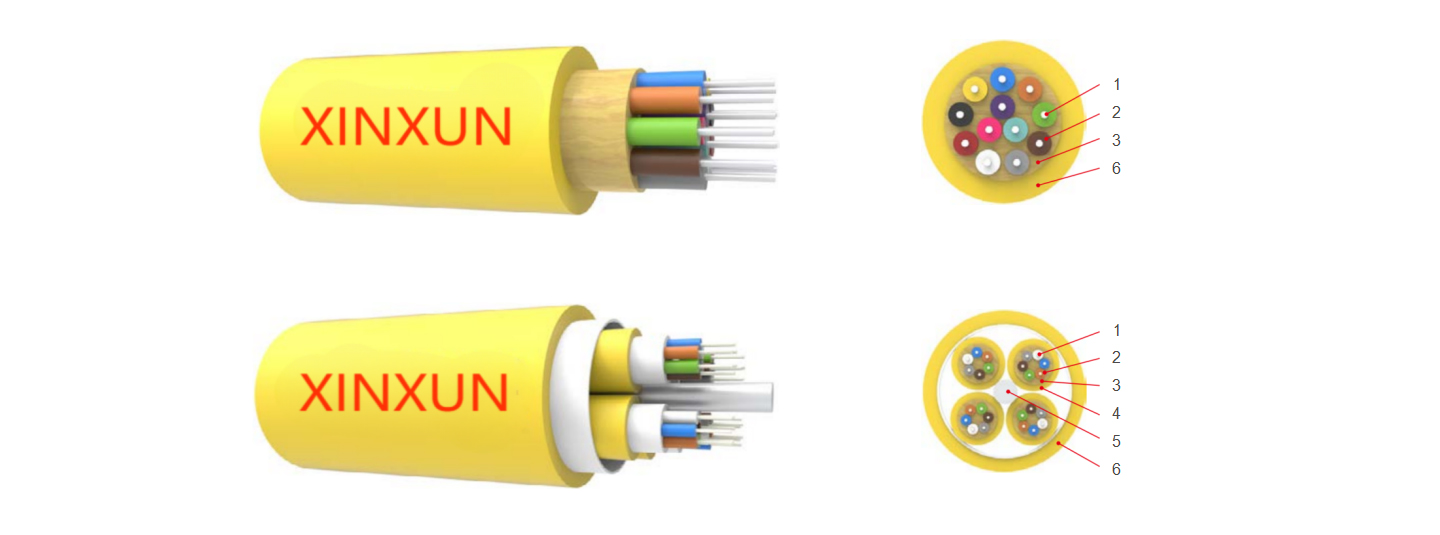

Structure & Material

No.	Item	Material
1	Fiber	G.652D (B1.3), G.657A1 (B6a1), G.657A2 (B6a2), 50/125μm (A1a), 62.5/125μm (A1b) …
2	Tight buffer	PVC、LSZH、Nylon、Hytrel …
3	Strength member	Aramid yarn
4	Inner sheath	PVC、LSZH、TPU …
5	Central strength member	FRP（ + PVC、LSZH）
6	Outer sheath	PVC、LSZH、TPU …
	Color	It can be customized

Cable Property

Distribution Cable
Number of cores	Diameter		Tensile strength		Crush resistance		Bending radius
	Diameter		Tensile strength		Crush resistance		Bending radius
	Tight buffer	Cable	Long term	Short term	Long term	Short term	Static	Dynamic
	Tight buffer	Cable	Long term	Short term	Long term	Short term	Static	Dynamic
	（mm）		（N）		（N/100mm）		—
4	0.9±0.05	4.6±0.3	70	220	200	350	10·D	20·D
6	0.9±0.05	5.0±0.3	130	440	200	1000	10·D	20·D
8	0.9±0.05	5.8±0.3	130	440	200	1000	10·D	20·D
12	0.9±0.05	6.0±0.3	130	440	200	1000	10·D	20·D
24	0.9±0.05	8.3±0.5	200	660	200	1000	10·D	20·D

Multi-cores Distribution Cable
Number of cores	Diameter		Tensile strength		Crush resistance		Bending radius

	Tight buffer	Cable	Long term	Short term	Long term	Short term	Static	Dynamic

	（mm）		（N）		（N/100mm）		—
48	0.9±0.05	15.8±0.5	400	1320	300	1000	10·D	20·D
72	0.6±0.05	19.4±0.5	400	1320	300	1000	10·D	20·D
144	0.6±0.05	24.0±0.5	400	1320	300	1000	10·D	20·D

Fiber Characteristic

Fiber type	Attenuation ( Max )				Bandwidth ( Min )
	Attenuation ( Max )				Bandwidth ( Min )
	850 nm	1300 nm	1310 nm	1550 nm	850 nm	1300 nm
	（dB/km）				（MHz·km）
SMF B1.3, B6	—	—	0.4	0.3	—	—
MMF A1a	3.5	1.5	—	—	200~800	200~1200
MMF A1b	3.5	1.5	—	—	160~800	200~1000

Environmental Performance

Transportation & Storage	Installation	Operation	Remarks

-20℃ — +60℃	-10℃ — +50℃	-20℃ — +60℃	RoHS

*All values above can be customized.
