Single-core Optical Cable

Description:

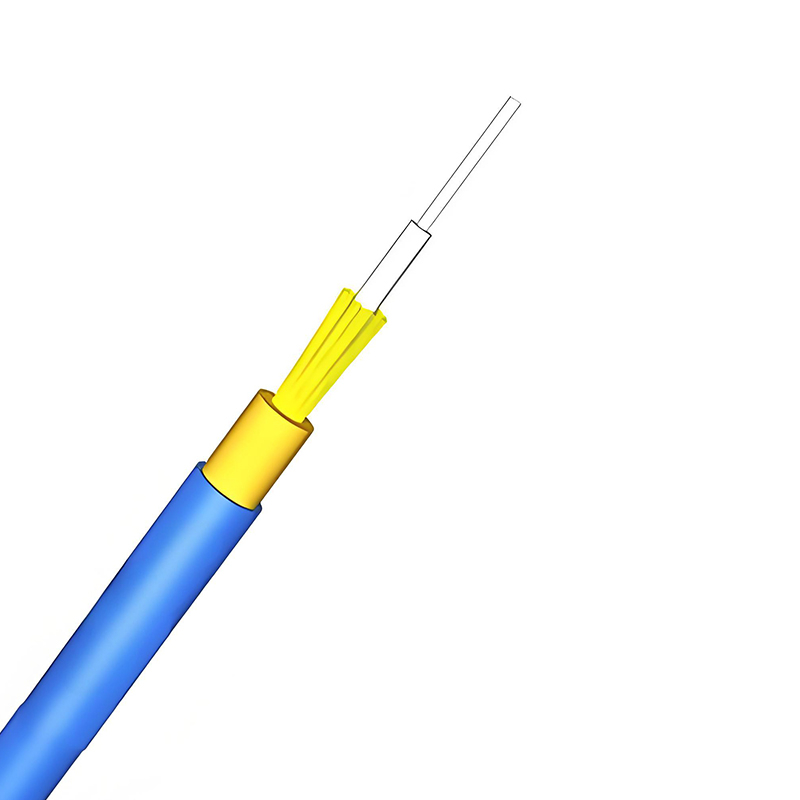

The cable uses a tight buffer fiber wrapped with a layer of aramid yarn as the optical communication medium, and it is completed with an outer sheath.

Feature:
Excellent flexibility and bendability
Aramid yarn makes the cable have excellent tensile strength
Different flame-retardant grades can be customized

Application:
Indoor cabling
OFNR or OFNP cable

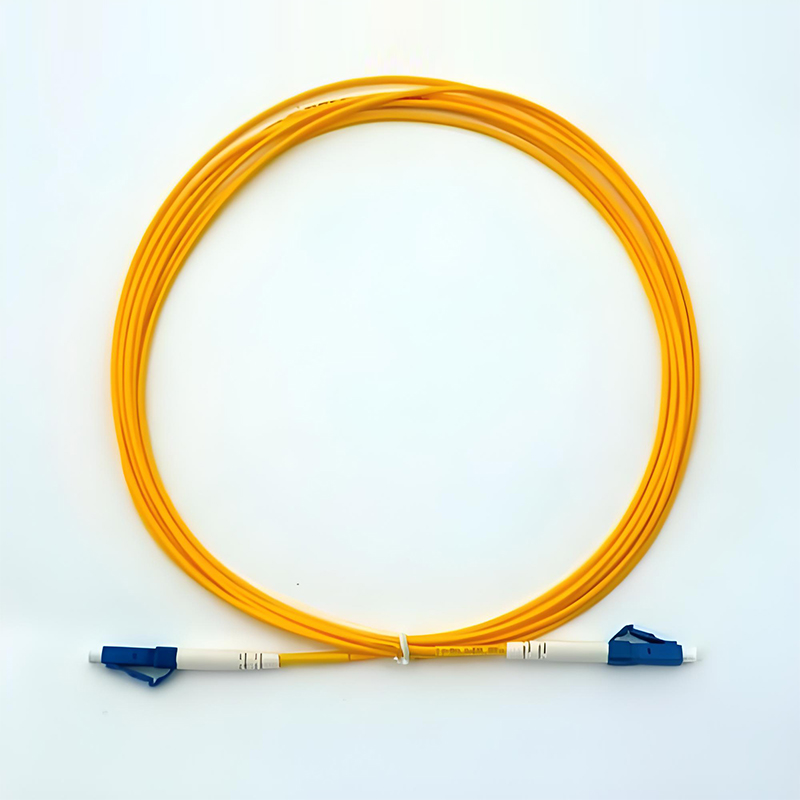

Pigtail and patchcord in communication equipments


Availability:



Inquire

Product Description

Structure & Material

No.	Item	Material
1	Fiber	G.652D (B1.3), G.657A1 (B6a1), G.657A2 (B6a2), 50/125μm (A1a), 62.5/125μm (A1b) …
2	Tight buffer	PVC、LSZH、Nylon、Hytrel …
3	Strength member	Aramid yarn
4	Outer sheath	PVC、LSZH、TPU …
	Color	can be customized

Cable Property

Cable type	Diameter		Tensile strength		Crush resistance		Bending radius
							B6		Others
	Tight buffer	Cable	Long term	Short term	Long term	Short term	Static	Dynamic	Static	Dynamic

	（mm）		（N）		（N/100mm）		（mm）
Φ1.6mm	0.6±0.05	1.60±0.1	40	80	100	500	15	30	30	60
Φ1.8mm	0.6±0.05	1.80±0.1	60	100	100	500	15	30	30	60
Φ2.4mm	0.9±0.05	2.40±0.1	60	100	100	500	15	30	30	60
Φ3.0mm	0.9±0.05	2.85±0.1	80	150	100	500	15	30	30	60

Characteristic

	Attenuation ( Max )				Bandwidth ( Min )
	850 nm	1300 nm	1310 nm	1550 nm	850 nm	1300 nm
	（dB/km）				（MHz·km）
SMF B1.3, B6			0.4	0.3
MMF A1a	3.5	1.5	—	—	200~800	200~1200
MMF A1b	3.5	1.5	—	—	160~800	200~1000

Environmental Performance

Transportation & Storage	Installation	Operation	Remarks

-20℃ — +60℃	-10℃ — +50℃	-20℃ — +60℃	RoHS
