Tight-buffered Optical Fiber

Description:

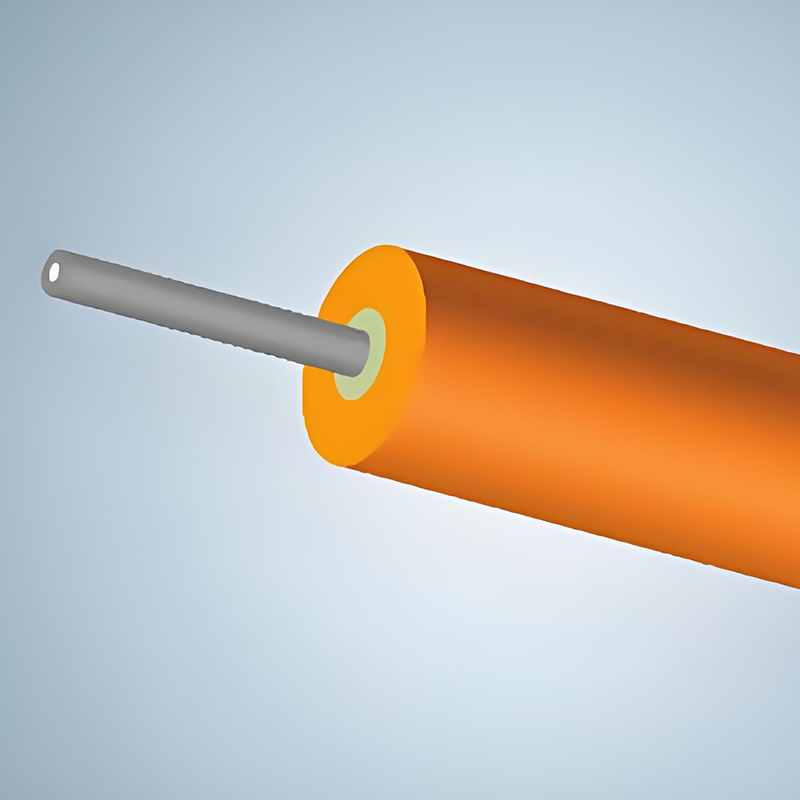

Tight buffer fiber is produced as that a fiber is sheathed by the buffer material.

Feature:
Excellent flexibility and bendability
The strippability can be customized
Different fiber and material types can be available

Application:

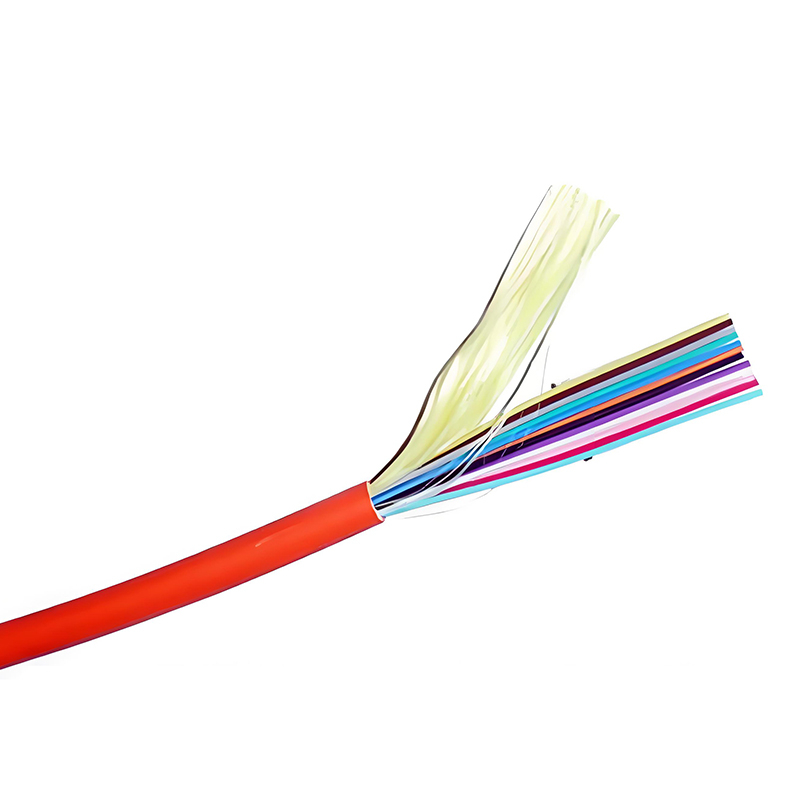

Basic units of indoor cable
Data transmission
Pigtail and patchcord in communication equipments


Availability:



Inquire

Product Description

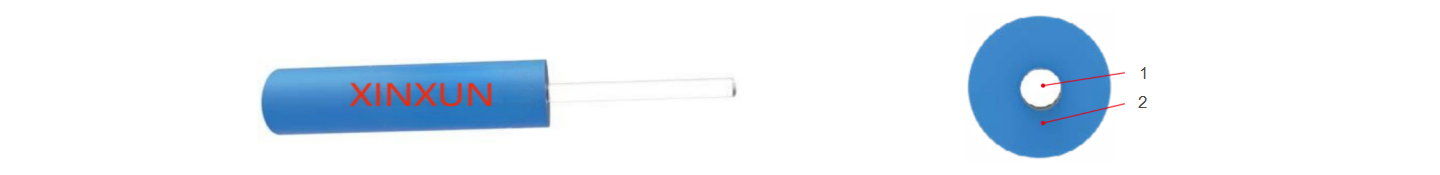

Structure & Material

No.	Item	Material
1	Fiber	G.652D (B1.3), G.657A1 (B6a1), G.657A2 (B6a2), 50/125μm (A1a), 62.5/125μm (A1b) …
2	Tight buffer	PVC、LSZH、Nylon、Hytrel …
	Color	It can be customized

Cable Property

Cable type	Diameter	Strippability	Tensile strength		Crush resistance		Bending radius
			Tensile strength		Crush resistance		B6		Others
			Long term	Short term	Long term	Short term	Static	Dynamic	Static	Dynamic
	（mm）	（N）	（N）		（N/100mm）		（mm）
Φ 0.6 mm	0.6 ± 0.05	≤ 13.3	3	6	20	100	15	30	30	60
Φ 0.9 mm	0.9 ± 0.05	≤ 13.3	3	6	20	100	15	30	30	60

Fiber Characteristic

Fiber type	Attenuation ( Max )				Bandwidth ( Min )
	850 nm	1300 nm	1310 nm	1550 nm	850 nm	1300 nm
	（dB/km）				（MHz·km）
SMF B1.3, B6	—	—	0.40	0.30	—	—
MMF A1a	3.5	1.5	—	—	200~800	200~1200
MMF A1b	3.5	1.5	—	—	160~800	200~1000

Environmental Performance

Transportation & Storage	Installation	Operation	Remarks
-20℃ — +60℃	-10℃ — +50℃	-20℃ — +60℃	RoHS

*All values above can be customized.
