Excellent Performance, Adapting to Various Environments

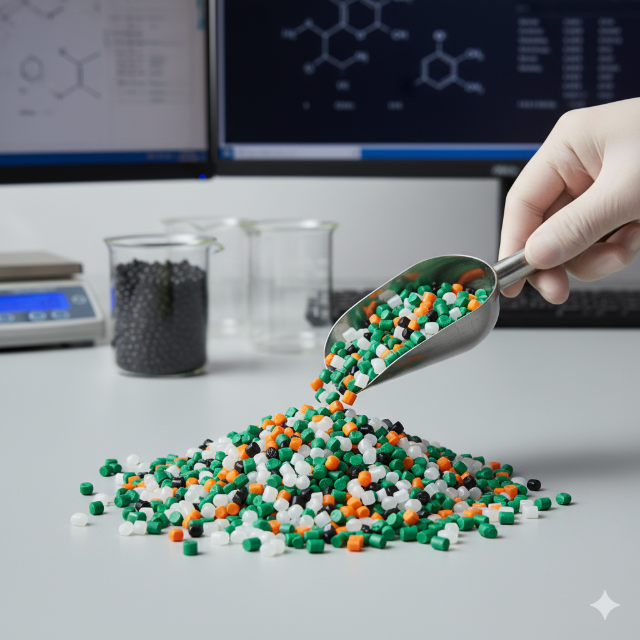

UL 83 PVC cable compound, with its versatile properties, is an ideal choice for building and general wiring applications:
Multiple Rated Temperatures and Environmental Adaptability: This PVC cable compound can meet the temperature requirements of different cable types, such as:
THHN (90°C Dry Locations): Provides excellent heat resistance in dry environments.
THWN (75°C Dry/Wet Locations): Suitable for both wet and dry environments, offering good water resistance.
THWN-2 (90°C Dry/Wet Locations): Achieves a higher temperature rating of 90°C in both dry and wet locations, providing enhanced performance.
This ensures that cables made from it operate safely and reliably in various indoor, outdoor, wet, or dry wiring environments.
Reliable Flame Retardancy: UL 83 compliant PVC cable compounds possess good flame-retardant properties. Wires and cables produced from them can effectively suppress flame spread in the event of a fire, enhancing the overall electrical safety level of buildings.
Good Electrical Insulation: The inherent dielectric properties of PVC material guarantee excellent electrical insulation performance for cables, effectively preventing short circuits and leakage, and ensuring the safety and stability of power transmission.
Excellent Mechanical Strength and Processability: While maintaining sufficient mechanical strength, this cable compound also offers good processing flexibility, facilitating efficient production for cable manufacturers and ultimately making cables easy for installers to install and route.
Wide Applications, Powering Urban and Rural Development
Due to its balanced performance and cost advantages, UL 83 PVC cable compound is widely used as the preferred material in the following industries and scenarios:

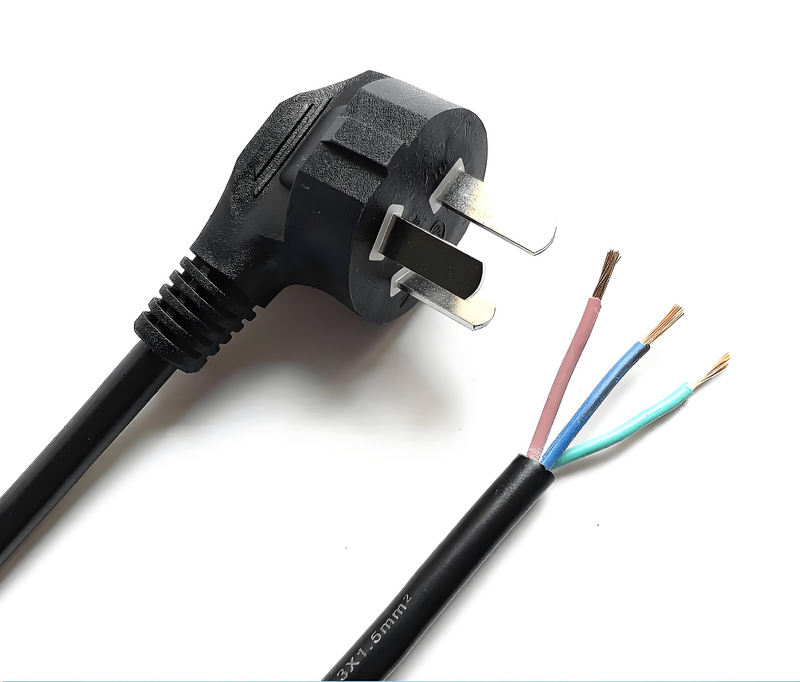

Residential Buildings: As the primary material for household circuits, lighting, and outlet wiring, ensuring the safety of residential electricity.
Commercial Buildings: Used in office buildings, shops, and public facilities for power supply and control lines of various electrical systems.
Industrial Plants: In non-harsh industrial environments, serving as basic cables for equipment connection and lighting wiring.
Electrical Infrastructure: Applied in distribution panels, switchgear, and general power transmission within conduits.
Choosing UL 83 compliant PVC cable compound means opting for a reliable raw material that has undergone rigorous testing and certification. It provides a solid foundation for producing safe, reliable, and cost-effective building and general wiring cables. They are an indispensable component of modern electrical infrastructure, providing lasting assurance for daily power supply.
| Specifications | Unit
| Test method | Standard value | Typical values
|
| Density | g/cm3 | ISO 1183-1 | 1.33±0.02 | 1.34 |
| Hardness | Shore A | ASTM D2240 | 93±3 | 93 |
| Original tensile strength | MPa | ISO 527-2 | ≥13.8 | 22 |
Original elongation at break
| % | ISO 527-2 | ≥150 | 310 |
| UL aging (136 ± 2℃, 168h) |
| Residual tensile strength after aging |
UL2564 | ≥70 | 112 |
| Residual rate of fracture elongation after aging | ≥65 | 80 |
| Volume resistivity (20oC) | Ω·m | IEC 60093 | ≥1.0×1013 | 2.2×1013 |
| Impact brittleness temperature (-30oC) | ℃ | ISO 974 | Pass
|
| Oxygen Index | % | ISO 4589-2 | ≥28
| 30 |
Processing and extrusion
Before extrusion, it is recommended to dry this model of product for about 2 hours at a drying temperature of 80 ℃. It is recommended to use a screw with a compression ratio of about 2.8-3.2 and good plasticization for processing. Due to the fact that the actual melting temperature is related to the length to diameter ratio, compression ratio, and screw structure of the screw, the appropriate extrusion temperature should be selected based on the specific situation of the extruder. At the same time, it is recommended to install copper wire preheaters in thin-walled products to ensure optimal product performance.
Storage
This product should be stored in a clean, dry, and ventilated warehouse and should not be damaged by abnormal conditions such as sun exposure, rain, or immersion in water. The storage temperature should not be lower than 0 ℃. The storage period of this product should not exceed 6 months from the date of production
