Company

PRODUCT CENTER

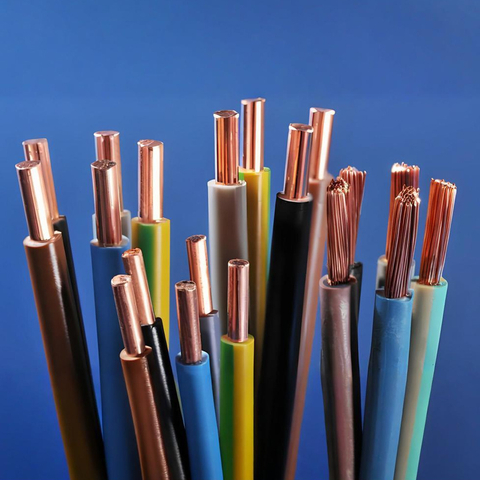

  • UL 444 PVC Cable Compound: The Key To Building Reliable Data Networks UL 444 PVC Cable Compound
    Quick View
    More Details  >
    UL 444 PVC Cable Compound
    Quantity:
    		Stock 0
    Add to Basket
    UL 444 PVC Cable Compound
    Brand: Everest
    Product Code:
    Model: YPF-75P
    Brief:
    In an era of rapid information flow, stable and efficient communication networks are fundamental to both business operations and daily life. The performance and safety of communication cables, which are at the heart of the network's physical layer, critically depend on the materials used. UL 444 PVC communication cable compound is precisely such a high-performance composite material, specifically designed to meet the stringent standards of the communication industry.

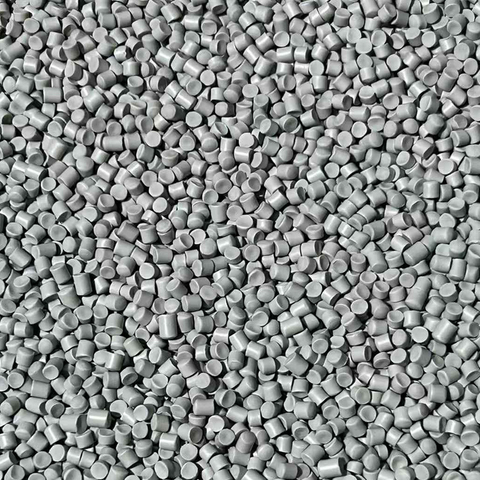

  • Two-step Silane Cross-linked Insulation Material for Overhead Insulated Cables with A Voltage Level of 10 KV And Below 10KVand Below Two Processes Silane Crosstinksng Insueing Materials for Aerialinsulated Cable
    Quick View
    More Details  >
    Silane Cross-linked Insulation Material
    Quantity:
    		Stock 0
    Add to Basket
    Silane Cross-linked Insulation Material
    Brand:
    Product Code:
    Model:
    Brief:
    Description:
    Two processes silane crosslinked insulating material, mainly used for the insulation of low-and medium-voltage aerial cables produced through a extruded pipe die. The working voltage of wire and cable is 10KV and below, the highest working temperature is 90℃; The default color of the product is black, and the color can also be customized according to customer requirements.

    Processing:
    Most single screw extruders that process thermoplastics can process this product. The screw compression ratio is generally 2.5-3, the aspect ratio is about 25, and the screw is the common type with equal distance and unequal depth. The reference temperature of barrel temperature is 150℃-195℃, Die Temperature is 180℃-200℃. The cooling water temperature is recommended to adopt step-by-step cooling to reduce the internal stress of insulating material.

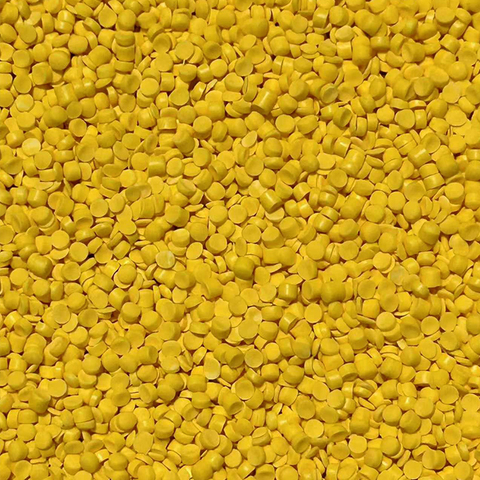

  • Irradiation Cross-linked Halogen-free Low-smoke Flame-retardant Insulation Material Iradiation Crosslinked Low-smoke Halogen Freeflame Vetardant Insulating Material
    Quick View
    More Details  >
    Irradiation Cross-linked Halogen-free Low-smoke Flame-retardant Insulation Material
    Quantity:
    		Stock 0
    Add to Basket
    Irradiation Cross-linked Halogen-free Low-smoke Flame-retardant Insulation Material
    Brand:
    Product Code:
    Model:
    Brief:
    Description:
    This is ecru product. The product is suitable for medium and low voltage cables, which require high temperature resistance. It can be directly made into various color products, or add various polyolefin color master batch according to customer requirement. It has excellent mechanical properties, good flame retardant and electrical properties, fine machining properties.

    Processing:
    This series of products, it is recommended to dry for about 2 hours before processing,drying temperature: 70℃, drying temperature can rise to 80℃in the starting state. It is recommended that the aspect ratiois about 25, and the screw with good plasticization is processed. The processing temperature is suggested to be: 125℃-135℃-145℃-155℃-165℃(reference temperature).

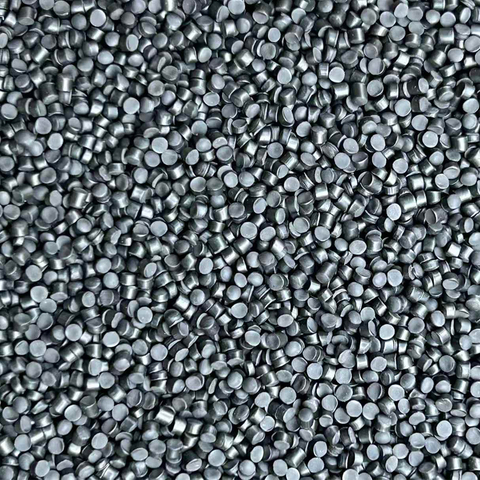

  • lrradiation crosslinked low-smoke halogen-freeflame-ret dant and oil-resistant sheath material Radiation Crosslinked Low-smoke Halogenfrefamevetardant Sheath Materal
    Quick View
    More Details  >
    Radiation Cross-linked Low-smoke Halogen-free Flame Retardant And Oil-resistant Sheath Material
    Quantity:
    		Stock 0
    Add to Basket
    Radiation Cross-linked Low-smoke Halogen-free Flame Retardant And Oil-resistant Sheath Material
    Brand:
    Product Code:
    Model:
    Brief:
    Description:
    This series of products are suitable for locomotive wiring. The product has high temperature resistance, good flame retardant, excellent physical and mechanical properties and fine processing performance.

    Processing:
    This series of products, it is recommended to dry for about 2 hours before processing, drying temperature: 70℃, drying temperature can rise to 80℃in the starting state. It is recommended that the aspect ratio is about 25, and the screw with good plasticization is processed. The processing temperature is suggested to be: 125℃-135℃-145℃-155℃-160℃(refer ence temperature).

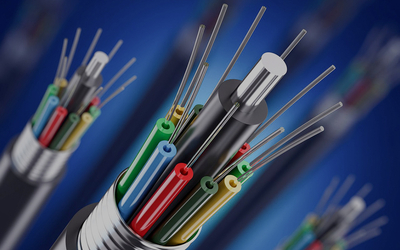

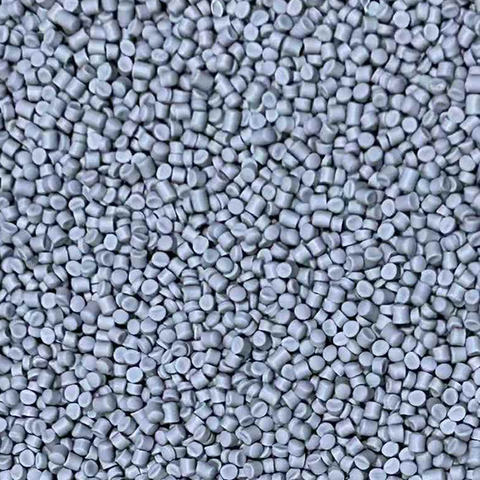

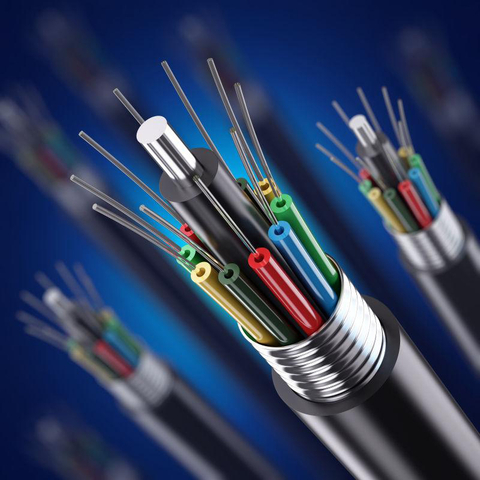

  • Opticalcable Polyethylene Sheath Matertd Opticalcable Polyethylene Sheath Matertd
    Quick View
    More Details  >
    Opticalcable Polyethylene Sheath Matertd
    Quantity:
    		Stock 0
    Add to Basket
    Opticalcable Polyethylene Sheath Matertd
    Brand:
    Product Code:
    Model:
    Brief:
    Description:
    This series of products are suitable for cable sheath, insulating compound and optical fiber cable sheath. Products comply with GB/T15065-2009 standard, with excellent processing performance.

    Processing:
    This series of products, it is recommended to dry for about 2 hours before processing, drying temperature: 80℃, drying temperature can rise to 100℃ in the starting state. The processing temperature is suggested to be: 180℃- 190℃-200℃-200℃-210℃-210℃(reference temperature).

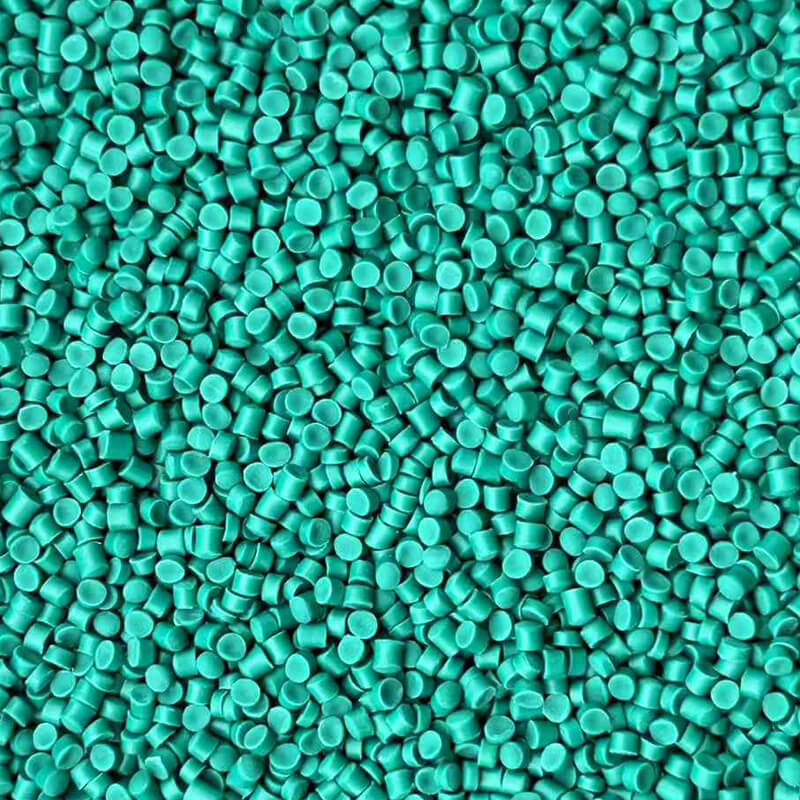

  • Low-smoke Halogen-free And Flame-retardant Sheath Naterial for FTTH Optical Fiber Cable Low-smoke Halogen-free And Flame-retardant Sheath Naterial for FTTH Optical Fiber Cable
    Quick View
    More Details  >
    Low-smoke Halogen-free And Flame-retardant Sheath Material for FTTH Optical Fiber Cable
    Quantity:
    		Stock 0
    Add to Basket
    Low-smoke Halogen-free And Flame-retardant Sheath Material for FTTH Optical Fiber Cable
    Brand:
    Product Code:
    Model:
    Brief:
    Description:
    This series of products are suitable for indoor FTTH optical cables. It can be directly made into various color products, or add various polyolefin color master batch according to customer requirement. It has excellent physical and mechanical properties, good flame retardant, and fine processing performance.
    Processing:
    This series of products, it is recommended to dry for about 2 hours before processing, drying temperature: 70℃, drying temperature can rise to 80℃in the starting state. It is recommended that the aspect ratio is about 25, and the screw with good plasticization is processed. The processing temperature is suggested to be: 145℃-155℃-165℃-165℃ -170℃(reference temperature).

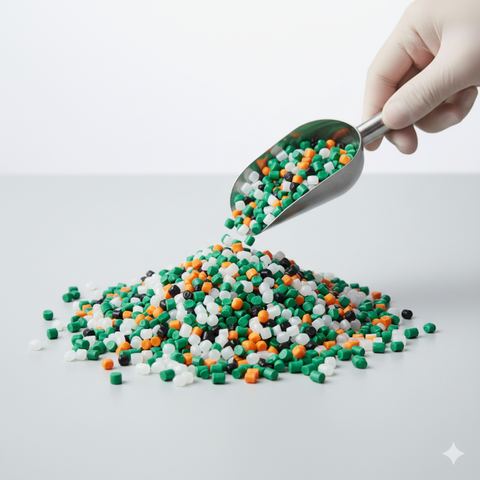

  • Compound
    Compound

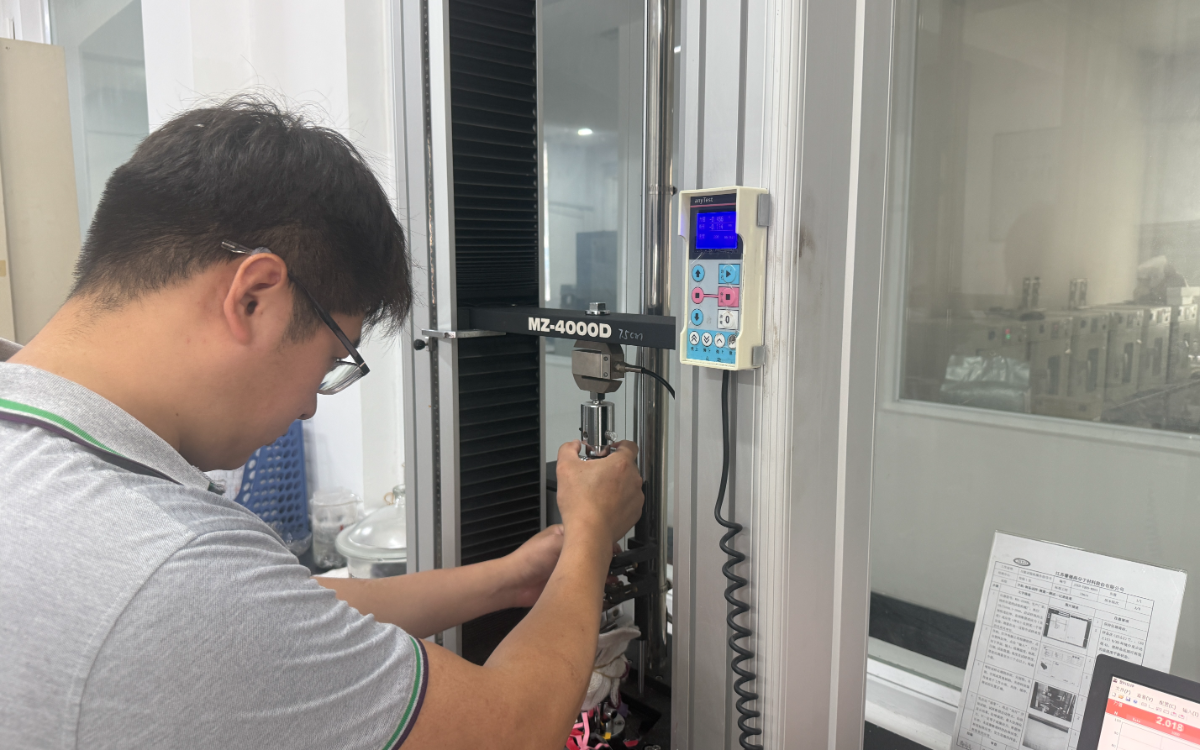

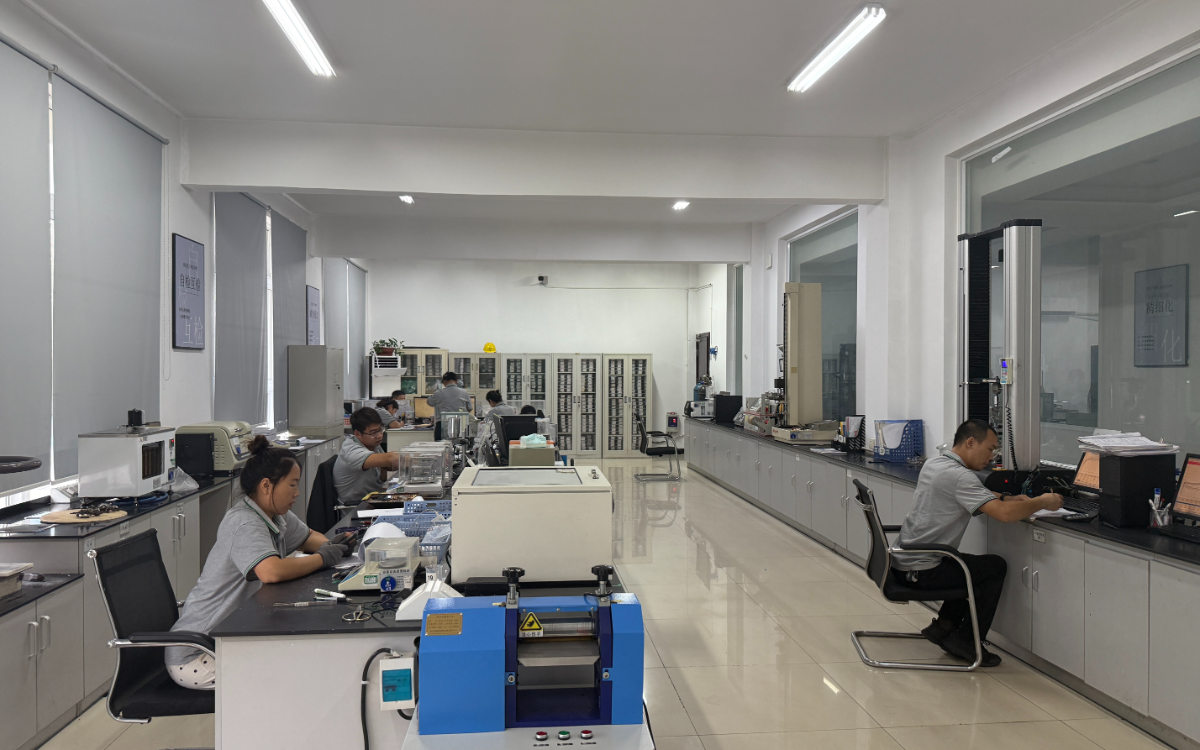

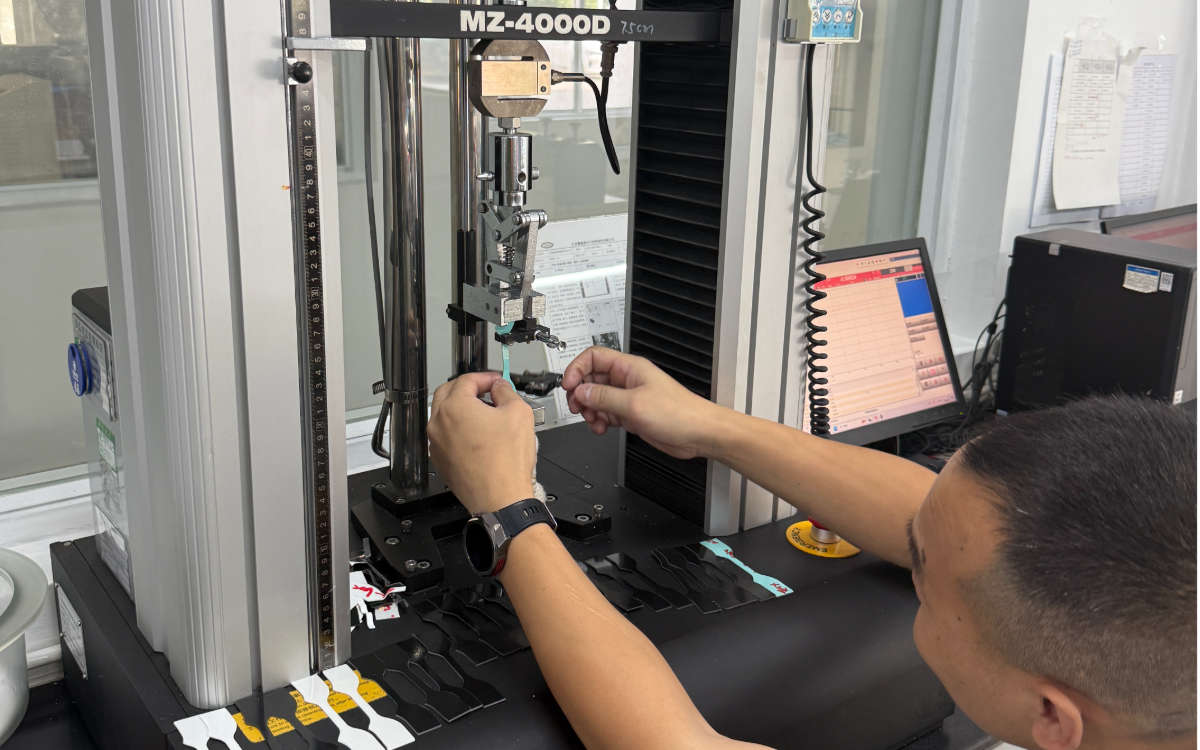

  • Quality Control and Analysis
    Quality Control and Analysis
  • Environmental Protection
    Environmental Protection
  • Technical Support
    Technical Support

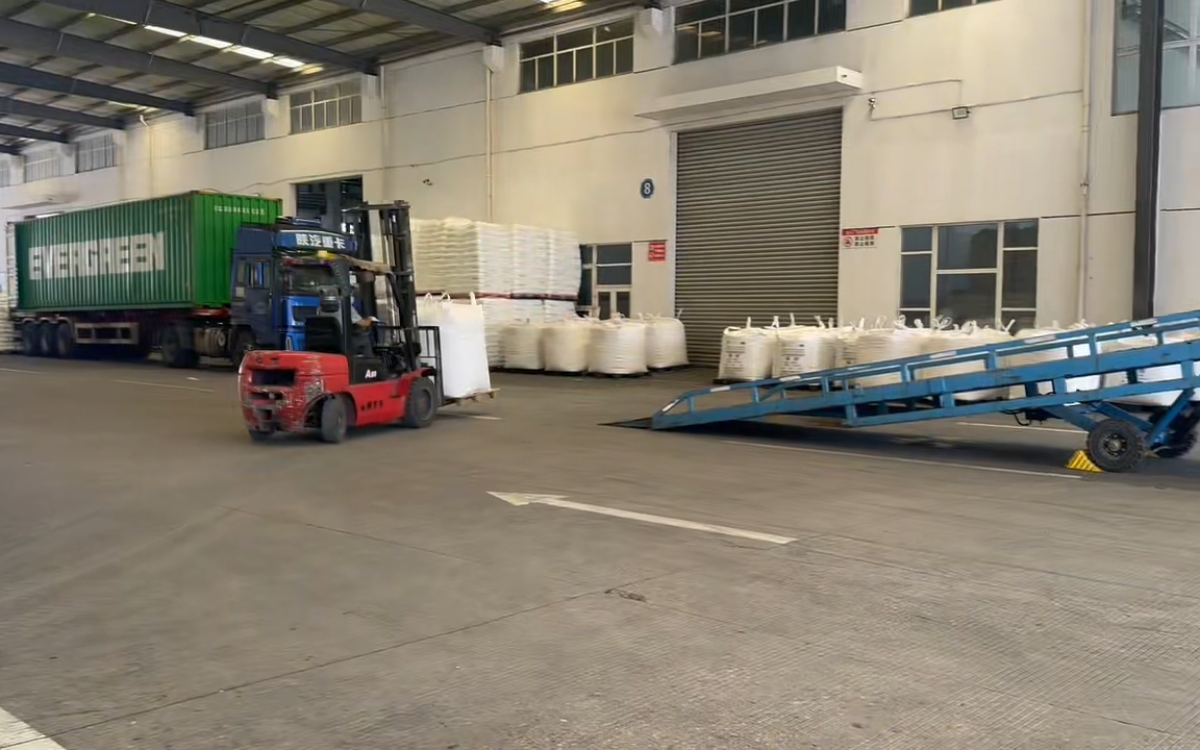

  • Logistics and Delivery Services
    Logistics and Delivery Services
  • After-Sale Service
    After-Sale Service

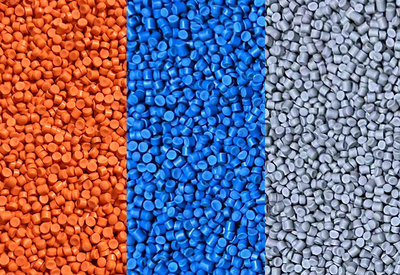

LSZH Material Selection Guide

Everest Cable Materials Releases LSZH Material Selection Guide, Empowering Safer Cable Design** **May 23, 2025, Shenzhen, China**—a global leader in polymer material solutions, today unveiled its *Low Smoke Zero Halogen (LSZH) Material Selection and Application Whitepaper*, providing comprehensive guideli

READ MORE
2025-05-23
Leading The Way with Innovative Materials at 2025 Wire Southeast Asia

With the successful conclusion of the three-day 2025 wire Southeast Asia exhibition in Bangkok, Shanghai Everest Cable Materials Co., Ltd. returns home with great success. This event was more than just a product showcase; it was a valuable platform for deep interaction with industry leaders and for

READ MORE
2025-09-24
What Is LSZH Material?

LSZH Cable Material: A Modern Choice for Safety and Sustainability

READ MORE
2025-03-20
We are committed to providing high-performance, environmentally friendly, and energy-efficient cable materials for industries such as power, telecommunications, transportation, and construction.
